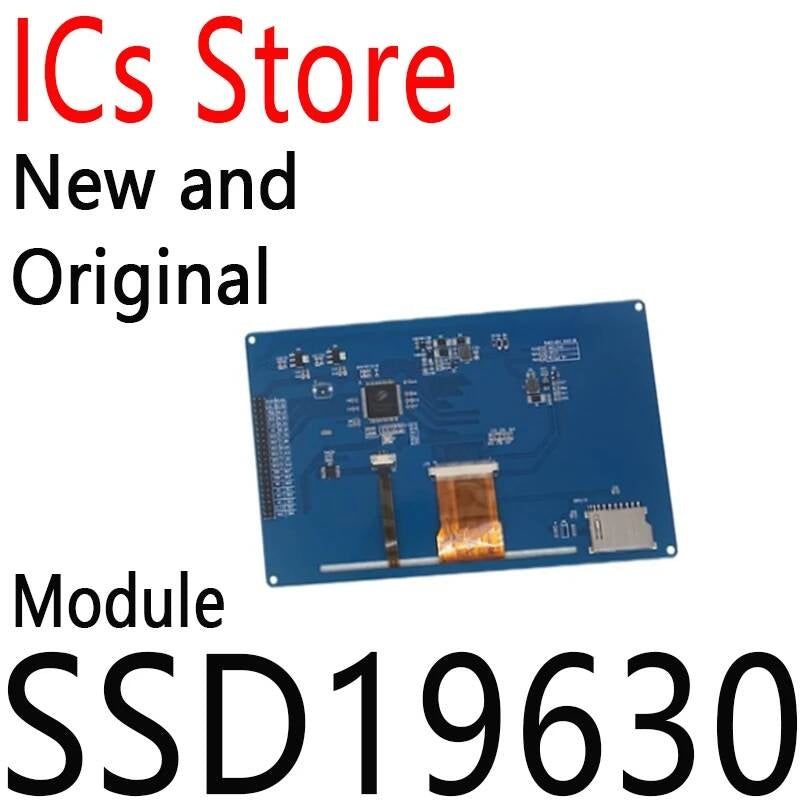

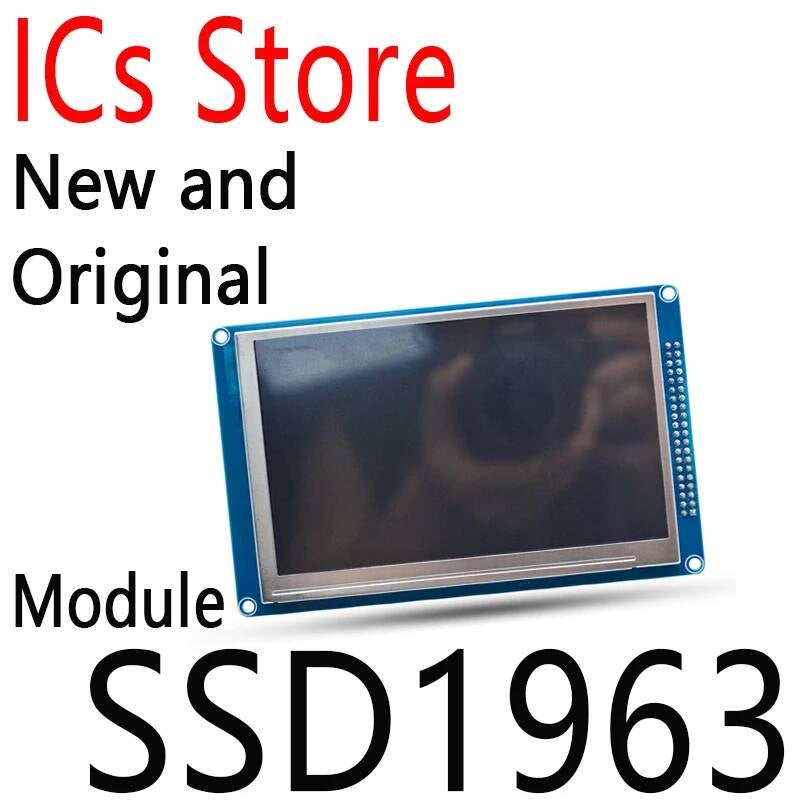

New 7" inch TFT LCD module 800x480 SSD1963 Touch PWM For Arduino AVR STM32 ARM Description: This 7.0" TFT LCD Module can be can be easy controlled by MCU such as 51,AVR,STM32,PIC,MSP430,DSP,ARM, and ARM .It can be used in any embedded systems which require display high quality colorful image. The Module used SSD1963 LCD controller with 7 inch LCD module with touchscreen. This LCD has a superior display quality and super wide viewing angle, please see the sample pictures, they are taken directly from the LCD display. Features: 7.0" TFT LCD Module, Resolution 800x480, SSD1963 Controller LCD Type: TFT Transmissive Normal White Interface: 16bit parallel bus interface PCB Color: Blue On board 400mA DC-DC Boost regulator to provide power supply to LCD backlight LCD-specificed intialization code is provided, so that you can save time to optimize power control register and gamma curves for best display performance. We have test the provided code, it gives the best display performanace Module dimension: 186mmx106mmx23mm(including pin header extrusion) Active Area: 154mmx86mm Pixel pitch: 0.179mmx0.179mm Standard 2x20 2.54mm pin header for connection to MCU/development board Module weight: 410grams Warning: All data port voltage can not exceed 3.6V.

Package Included: 1PCS*New 7" inch TFT LCD module 800x480 SSD1963 Touch PWM, For Arduino AVR STM32 ARM
